EDGE DLX – Line 6 HX Tone Match Patches (Helix, HX Stomp, POD Go)

PATCHES

This download includes patches for Helix, HX Stomp, and POD Go. Please make sure to import the appropriate patch for your hardware – they are not interchangeable.

• EDG DLX TM WT SC – This patch uses the IR’s and is meant for guitars with single coils.
• EDG DLX TM WT HB – This patch uses the IR’s and is meant for guitars with humbuckers.
• NOTE: The HX Stomp and POD Go folders include ‘FX” patches. These patches include the additional effects blocks from the full Helix patch.


OUR FENDER THE EDGE DELUXE, NOW IN YOUR LINE 6 HARDWARE

For these patches, we tone-matched a stock HX amp model to our Fender ‘The Edge’ Deluxe. The result is an Impulse Response that completely transforms the HX amp model, making the Line 6 hardware sound exactly like our amp, and the microphones, preamps, and EQ chains that we use to record it.

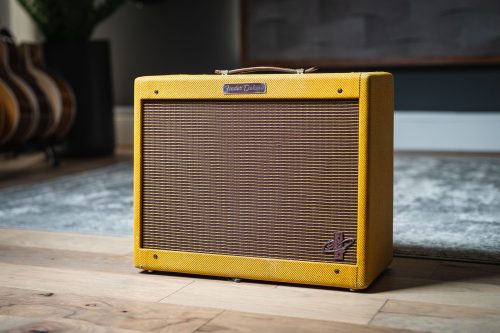

The ‘Edge’ Deluxe from Fender is a signature amp for The Edge from U2. While Edge is known for playing an AC30, a vintage 5E3 Deluxe has always been part of his secret tone recipe. The signature Edge 5e3 Deluxe features a few tweaks to the hand-wired circuit as well as a Celestion Alnico Blue speaker. The result is the familiar 5e3 Deluxe tone but with a bit more headroom and chime. If you love vintage Fender tone, you’ll love The Edge’s take on the Deluxe.

The cabinet is loaded with a Celestion Alnico Blue. We’ve tone-matched the mic’d cabinet with a Royer 121 and Earthworks SR25 through a stereo Neve 1073 preamp.

SIGNAL FLOW AND EFFECTS

1. Input
2. Compressor
3. Pitch
4. Drives: KOT, 808
5. Volume – mapped to EXP 2
6. Amp
7. IR
8. EQ
9. Tremolo
10. Chorus
11. Delays: 1/8 delay, Dotted 8th delay, Dual stereo delay
12. Reverbs: Hall (subtle), Dynamic Hall (huge)
13. Output

The HX Stomp and POD Go patches cannot fit all the effects into a single patch. For those platforms, we include the amp and essential effects in the main patches, and then we include the additional effects blocks in the ‘FX’ patches. Feel free to mix and match the additional ‘FX’ blocks into the main patches to suite your needs.

SNAPSHOTS

• Snapshot 1: CLEAN-ISH. Base clean tone
• Snapshot 2: DRIVE. Stage 1 drive tone
• Snapshot 3: DRIVE+. Big rhythm tone
• Snapshot 4: P&W LEAD. Lead tone with lots of delay and verb
• Snapshot 5: AMBIENT. Clean tone with lots of delay and verb
• Snapshot 6: CLEAN CHORUS. Clean tone with chorus
• Snapshot 7: CLEAN TREM. Like Snapshot 4 but with POG
• Snapshot 8: ROCK LEAD. Solo tone with fewer reverb and delay effects

POD Go:

• Snapshot 1: CLEAN. Base clean tone
• Snapshot 2: DRIVE. Stage 1 drive tone
• Snapshot 3: P&W LEAD. Lead tone with lots of delay and verb
• Snapshot 4: AMBIENT. Ambient clean tone

NOTE: The HX Stomp patches do not include Snapshots
