IR Cabs Sample Pack


The IR Cab sample pack includes selected IR’s from our Impulse Response speaker/cab library. Currently the sample pack includes IR’s from the Match G12H30 and Blue AC 2×12 packs. Compatible with a wide range of hardware and software including Line 6 (Helix, POD Go, etc), Kemper, Fractal, and Iridium.

Categories: , SKU: IRCab-000



1. CROSS PLATFORM: These .WAV impulse responses can be used in any hardware or application that supports IR’s. This includes products by Line 6 (Helix, HX Stomp, HX Effects, etc), Kemper, Axe-FX, etc.

3. EXPERIMENT: We’ve included multiple options in this IR pack (more details below). The best idea is just to start experimenting and find the IR or combinations of IR’s that sound the best.


The first step is to determine what sample rate and length you need to use. Refer to the user manual of the hardware or software you intend to use the IR’s with to determine the correct file type. These IRs come in the following options:

  • 44.1 kHz, 200ms and 500ms
  • 48 kHz, 200ms and 500ms (Line 6 Hardware – use 500ms)
  • 96 kHz, 200ms and 500ms (IRIDIUM – use 500ms)
  • We’ve also included a ‘Line 6’ and ‘Iridium’ folder. These are the 48k 500ms and 96k 500ms options respectively.

Next you’ll want to experiment with the different mic options. Our recommendation is to start with the ‘mic combo’ options. We have found that if you intend to run two IR’s in stereo, the best results come from using two different single mic IR’s. See the ‘Mic’ section below for more details.


The IR’s in this sample pack include both a Matchless ESS 1×12 cab loaded with a Matchless/Celestion G12H30 and a Korg-era Vox AC30 loaded with Celestion Alnico Blues.

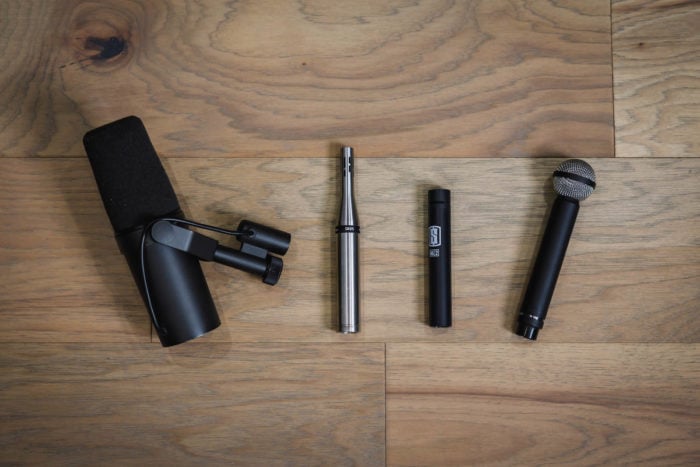

To create these IR’s, we used a variety of microphones, including a Slate VMS ML2, which we used to recreate emulations of classic microphones. The full packs include all single mic options and up to 8 different mic combo options. We’ve included a few of our favorites in the sample pack.

In the file names you’ll see microphone codes. Here is what they mean:

  • ‘7b’ – This is the Shure SM7b. It’s a dynamic microphone that sounds a bit more focussed than an SM57 with a slightly different midrange character. Pairs well with ribbon mics.
  • ‘160’ This is the Beyerdynamic M160. It’s a ribbon mic that is a popular alternative to the Royer 121. It’s punchy and offers the warmth of a classic ribbon mic but with the punch and midrange often found in dynamic mics. Pairs well with dynamic mics.
  • SR25’ – This is the Earthworks SR25. A small diaphragm condenser that works extremely well on a wide variety of instruments, and surprisingly well on guitar cabs. It’s very articulate and bright without being harsh, but has a ton of warmth and character as well. We love pairing this with the 160. Pairs well with ribbon mics.
  • ’57’ – This one is actually an emulation of a vintage Shure SM57 from the Slate ML2. To our ears it’s a slightly smoother/warmer version of a modern 57. Pairs well with ribbon mics.
  • ‘121’ – This is an emulation of a Royer 121 via the Slate ML2. The 121 is a classic ribbon mic used on countless hit records. Pairs well with dynamic mics.
  • ‘M222’ – This is an emulation of a Schoepps M222, a rare vintage tube microphone. This one is the warmest of the bunch – it works well to add warmth and character to brighter amps, and pairs well with dynamic microphones.


The IR’s are available in WAV formate in four different sample rates: 44.1 kHz, 48 kHz, and 96 kHz (all at 24 bit) and at both 200ms and 500ms. This ensures these IR’s  are compatible with a wide variety of hardware and software options.
