TLR 816 – Acoustic IR Pack


(2 customer reviews)

This Acoustic IR pack captures the incredible tone of a Taylor 816 CE acoustic guitar. These IR’s can be used in any hardware or app that accepts .wav IR files. Get the sound of a world class mic’d acoustic guitar direct. Includes multiple acoustic pickup options to accommodate a wide range of acoustic guitars and pickups.

These are meant to make your acoustic guitar sound incredible. They are not designed to make an electric guitar sound like an acoustic.

Version 2.0 adds IR options specifically for guitars fitted with Taylor’s Expression System 2 electronics.

Categories: , SKU: IR-004



1. INTENDED FOR USE WITH ACOUSTIC GUITARS: Our acoustic IR’s are intended to be used with acoustic guitars. They are not meant to make an electric guitar sound like an acoustic guitar.

2. CROSS PLATFORM: These .WAV impulse responses can be used in any hardware or application that supports IR’s. This includes products by Line 6 (Helix, HX Stomp, HX Effects, etc), Kemper, Axe-FX, etc.

3. EXPERIMENT: We’ve included multiple options in this IR pack (more details below). The best idea is just to start experimenting with your guitar and find the IR or combinations of IR’s that sound the best. Our recommendation is to first find the pickup type that fits your guitar best (see the pickup options section), and then experiment with different mic options for that pickup type.

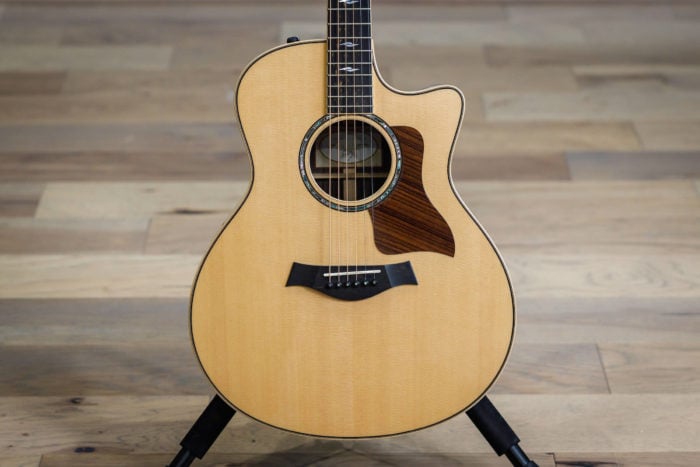

These IR’s were created using a Taylor 816 CE. The 816 is Taylor’s Grand Symphony body style featuring a spruce top with rosewood back and sides. This guitar sounds absolutely huge across the entire frequency range with a warm rich midrange character.


Our acoustic impulse responses are meant to make the direct output of an acoustic guitar fitted with a pickup system sound more like a mic’d acoustic guitar – in this case, the mic’d McPherson MG 4.0. To do this, we’ve made detailed recordings of the McPherson and then matched direct the output of various different  acoustic guitars to it.

You can use these IR’s with any hardware or software application that accepts WAV IR files. This includes all the HX Line 6 hardware, Fractal, Kemper, Iridium, and countless software apps and plugins.


To create this IR pack we used a variety of microphones. Using a Slate VMS ML1, we recreated emulations of classic microphones, as well as an Earthworks SR25.

In the file names you’ll see microphone codes. Here is what they mean:

  • C12 – AKG C12 (emulated with the Slate ML1)
  • M251 – Telefunken M251 (emulated with the Slate ML1)
  • M269 – Neumann M269 (emulated with the Slate ML1)
  • U47 – Telefunken U47 (emulated with the Slate ML1)
  • U67 – Neumann U67 (emulated with the Slate ML1)
  • SR25 – Earthworks SR25
  • 57v – Vintage Shure SM57 (emulated with the Slate ML2)
  • M222 – Schoeps M 222 (emulated with the Slate ML2)
  • C414 – AKG C414 (emulated with the Slate ML2)

Each of these mics (and mic emulations) will give you a different flavor. Some are extremely accurate (the Earthworks is legendary for their accurate mics, and the SR25 sounds fantastic), some are warm and vintage (try the Neumann and Telefunken options), and others are clear and bright (the SR25). Try different mic options with your guitar to see what sounds best.


There are many different acoustic pickups options out there, and we have given you multiple options to accommodate a wide range of guitars. Here is what you get:

  • EXP1: The “EXP1’ option is for Taylor guitars with Taylor’s Expression System electronics. These were made with a Taylor 414ce fitted with an Expression System 2 pickup system. If you have a Taylor with an ES pickup, these IR’s will be perfectly suited for it.
  • EXP2: The ‘EXP2’ options were created with the direct output of the Expression System pickup built into the Taylor 816ce. Try these options as an alternate to EXP1 if you have a Taylor with ES electronics.
  • SB1: The ‘SB’ options denote pickup microphones that are attached to the bottom of the sound board on an acoustic guitar. These include the mic portion of the LR Baggs Anthem, the K&K Pure Western transducer pickups, etc. For the ‘SB1’ options, we used the full microphone setting of the LR Baggs Anthem pickup installed in Brian’s Martin D-35. These are the darker of the two SB options.
  • SB2: For this setting, we used the full microphone setting of the LR Baggs Anthem pickup installed in the McPherson Camrielle. These are the brighter of the two SB options.
  • SB3 (Blend): These IR’s were made by blending the ‘SB1’ and ‘SB2’ IR’s, achieving a balance between the two – a great starting point for any guitar.
  • Pz1: If your guitar is equipped with an under saddle piezo, try the ‘Pz’ options. Pz1 was created with just the LR Baggs Element piezo mix of the Anthem system in the Martin D-35
  • Pz2: This was created with an Orangewood Brooklyn Live, equipped with a Fishman Flex EQ piezo system
  • Pz3: This option was created with a Takamine FD-360sc from the late ’90’s, equipped with a Takamine AD-1 piezo system. This is a higher-end piezo pickup/preamp.


The IR’s are available in WAV formate in four different sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz (all at 24 bit) at both 500ms and 200ms. This ensures these IR’s  are compatible with a wide variety of hardware and software options.

If your hardware or application does not require a specific sample rate or length, use the 48k 500ms options.


.WAV IR’s are compatible with a huge range of software and hardware solutions, so there is no way we can really cover every scenario, but here are a few popular ways you can use these IR’s.

  • Line 6 HX Hardware (Helix, Stomp, HX Effects, POD Go, Helix Native):  Use the 48k IR’s. Open HX Edit and drag and drop any of the IR’s into the ‘Impulses’ column. Next, add an IR block to a patch and select the desired IR from the drop-down. You will probably want to turn the level of the IR block up – in our experience we have set it close to 0.
  • Strymon Iridium: Use the 96k options. In the Iridium editor, import the IR’s to an IR slot. Make sure to turn the amp modeling off (unless you’d like to run your acoustic guitar through a Marshall).
  • Mooer Radar: Use the 48k options. Download the Radar Editor and import the desired IR into any slot. We recommend turning the power amp and EQ sections off.
  • Kemper: Use the 48k options. In Rig Manager, drag and drop the desired IR into the cab section. Kemper will automatically convert it to the proper format. Make sure to disable the amp section (just use the cab).
  • Fractal (FM3, Axe-FX III, etc). Use the 48k options. In the Edit software, open up the Cab Manager (Tools -> Manage Cabs). Show the Browser in the Cab Manager and drag and drop the acoustic IR’s into the browser. You may then drag them into a desired location. You can select the IR’s using a cab block or using the ‘IR Player’ block.


2020-10-27: Initial Release

2 reviews for TLR 816 – Acoustic IR Pack

  1. mgumwv (verified owner)

    The EXP IR’s work wonderfully with my Taylor 114ce!

  2. [email protected] (verified owner)

    These IRs are pretty amazing. I’m using this pack with a Taylor 416 with ES2 pickup system, and it’s a perfect match. I’m using these for recording, not for live use. Seeing as the 416 is very similar to the 816 sonically, it sounds like my guitar mic’d up, but I feel like I have more control and consistency. I didn’t know what to expect from these, but the YouTube demo sounded good so I gave them a shot. So glad I did. I seriously won’t be bothering to mic up my guitar anymore. My studio is such that I don’t have enough space to keep mics set up, so recording acoustic used to be somewhat of a chore. Now and I can just plug in and go. These IRs sound especially good mixing different mics if your IR software can do two IRs at a time (most can). I’m using these with Two Notes Wall of Sound and it works really well. I really feel like these IRs are NOT getting enough attention so I figured I’d write a review. Keep on making these IRs. They are wonderful.
